24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm

Brand Name : yuyang

Model Number : yy-24

Certification : CE, CCC, CE, ISO

Place of Origin : dongguan,china

MOQ : 1 set

Price : 9000$-12000$

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days after advance payment

Packaging Details : 3200kg

motor : siemens

inverter : yaskawa

molds : 24 pcs

power : 15kw

production speed : 2000 meters per min

Contact Now

this machine is for making copper from 0.8-1.2mm to 0.08-0.32mm

Spare Parts Brands:
Motor: Siemens
Inverter : Japan Yaskawa
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

Specifications:

wire drawing machine with annealing
Model 24DHT-VG150
control system digital readout button
power control dual inverter
wire inlet diameter 0.8-1.2mm
wire finished diameter 0.08-0.32mm
max wire speed 2000m/min
max dies NO. 24
mechanical elongation 13%+8.7%
construction of the machine boday steel plate welded and annealed,vertical four shafts
drawing capastan ceramic coated
capastan diameter 242mm
fix speed capastan diameter 206mm
spool bobbin size 300*215*270mm
transmission type import advanced flat belt drive
bobbin loading unloading type expansion shaft or single sfaft cone
main motor 11kw
spooler motor 4kw
tension adjustment weight type tension pulley
fix system automatic control of take up by PID
max loading capacity 50kg
lubrication capacity 50L/min
lubrication type spraying
brake magnetic brake
lubrication type for bearing without oil
annealing control 4 poles DC current output
annealing capacity 21 KVA
annealing voltage 0-57V
annealing current 300A
total power 15kw+21KVA
power source 380V,50/60HZ
Steam consumption 6-9kg/h 0.2-0.3MPa
coiling water consumption 4-8m³/h 0.2-0.25MPa
air consumption 15-25m³/h 0.4-0.6Mpa
dimensions 4.7*2.5*2.3M
weight 3000kg

24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm

24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm

24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm


Product Tags:

1.2mm Copper Wire Drawing Machine



1.2mm Copper Wire Drawing Machine



Yaskawa Copper Drawing Machine


Best 24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm wholesale

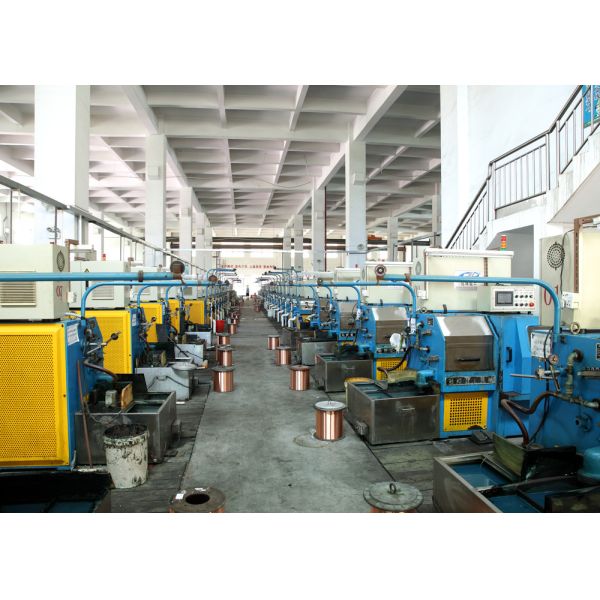

24 Pass Copper Wire Drawing Machine From 1.2mm To 0.2mm Images
